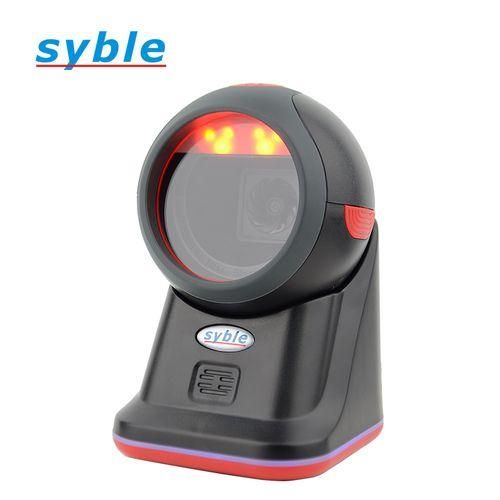

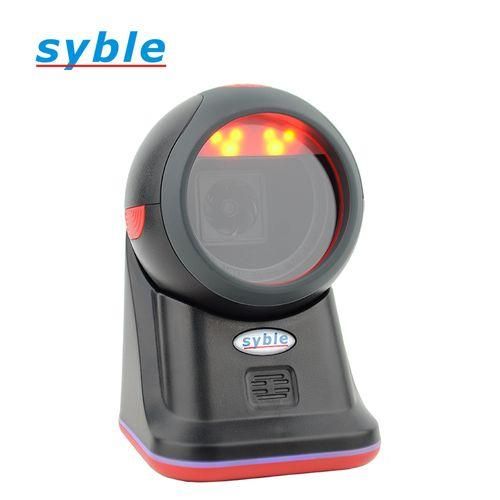

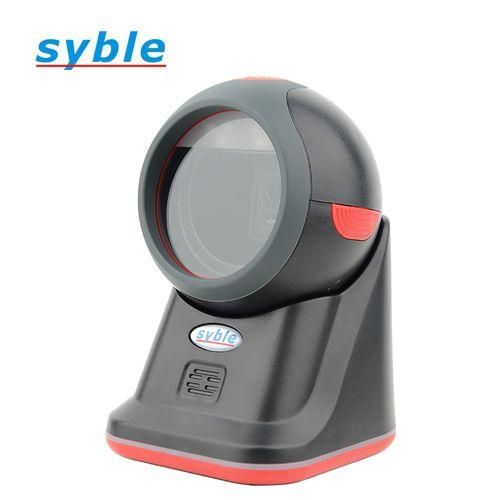

Syble Supermarket 2D Barcode Scanner Omnidirectional

ONMIDIRECTIONAL LASER 1D 2D LASER BARCODE READER!!

NEW 8602H PROCESSOR

Specification

1D and 2D OMNIDIRECTIONAL laser barcode scanner

Performance parameters

Light sources: 650 nm laser (safe visible laser diode)

Supported symbologies: EAN-8, EAN-13, UPC A, UPC E, CODE39 , CODE93, CODE128, EAN128, Codebar, Industrial Interleave 2 of 5, Matrix 2 of 5, MSI, China Post Code and all ID barcodes etc. .

Scan Type: Single Laser Scan

Speed: 1500 times/s

Scan Method: Manual/Successive Scan (Optional)

Scan Angle: Yaw 55°, Roll 30°, Pitch 65°

Accuracy: 4 mil (0.1mm)

Scanning field depth: 0-200mm (0.33mm, PCS90º/o)

Error rate: less than 1/5million

Interface: USB

Storage capacity: 512000 Bytes Pairing

Model: one to one

Physical parameters

Dimensions: 106mm* 111mm*155mm

Weight: 284g

Material: ABS+PC

Cable length: 2m

Environmental parameters

Operating temperature: -20ºC¿40ºC

Storage temperature: 40ºC¿70ºC

Relative humidity: 0º/o¿8Sº/o (non-condensing)

Resistance to drops / shock: withstands multiple drops of 3 meters onto concrete

Electrical parameters

Voltage: DCSV ± lOº / o

Current: 8SmA (in operation); lSOuA (quiescent current)
